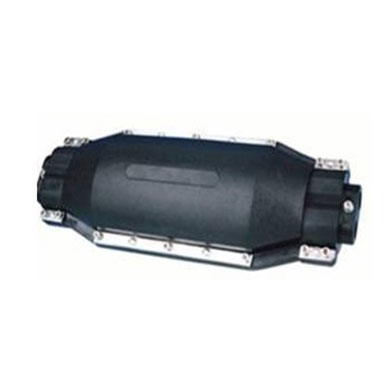

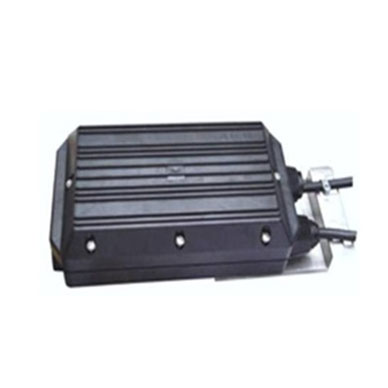

Joint /Splice Enclosure
PRODUCT DESCRIPTION

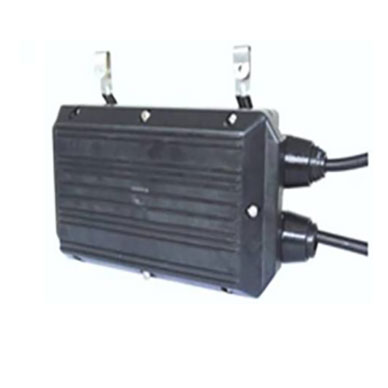

Application:The strong housing provide fire resistant, anti-aging,waterproof,anti-UV and quakeproof while protecting splices during pulling, torsining and impacting. Used to directly connect or splice optic cable fibers, in aerial, underground, direct buried, wall-mounting, hand hole and duct mounting application.Mounted on a pole, wall or a strand.
DESCRIPTION
Features:
1. Excessive fibers can be stored in storage baskets. Easy in fiber management.
2. Fabricated by mixing the imported material and other chemical assistant agent (ageing resistance & ultraviolet radiation resistance), increase of service life

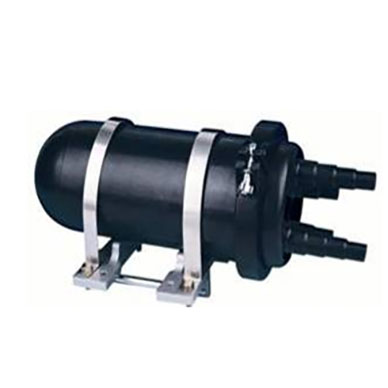

3. Base-to-dome seals on FOSC are mechanical and heat-shrinkable for ease of installation and reentry. No other sealing adhesive tape is needed

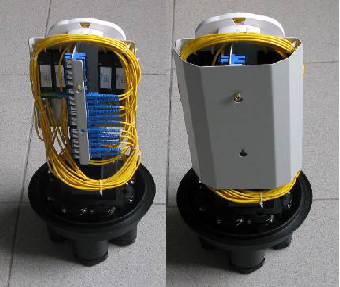

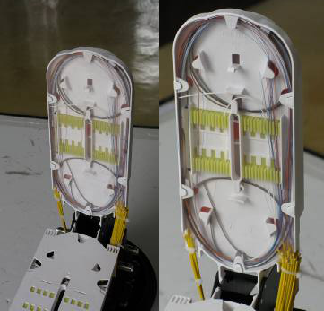

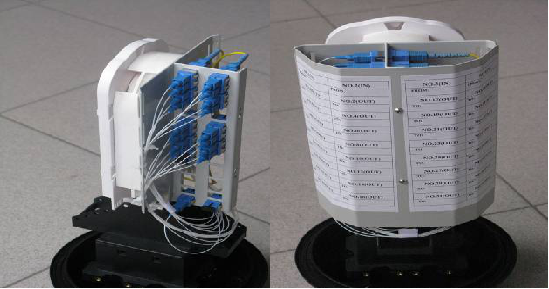

4. The splice trays are hinged for access to any splice without disturbing others trays
5. The inner parts and fixing parts are made of 304 stainless steel
6. FOSC with a earthling device protect it from damage by lightning
Technical Parameters:
1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimetre(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius≥ 40mm. Low optical loss.
|  |
|  |
| Dimensions and Capacity | |||
| Temperature | -30ºC - 75ºC | ||
| Humidity | ≤90% (at 30 ºC) | ||
| Air Pressure | 70kPa – 106kPa | ||
| Waterproof Grade: | IP68 | ||
Specification:
| Model | SP-FO-48 | SP-FO-16 | SP-FO-48 | ||
| Adapter | 24pcs of FO | 24pcs of SC | 48pcs of SC | ||
| Cable Ports | 1 uncut port | 1 uncut port | 2 round ports | 1 uncut port | 2 round ports |
| Applicable Cable | 10~17.5mm | 10~17.5mm | 8~17.5mm | 10~17.5mm | 8~17.5mm |
| Diameter | |||||
| Drop Cable Ports | 48 ports | 24 ports | 48 ports | ||
| Applicable Cable | 2*3mm FTTH Drop Cable, 2*5mm Figure 8 FTTH Drop Cable, 6mm cable (optional) | ||||
| Diameter | |||||
| Dimension | 385*245*130mm | 385*245*130mm | 385*245*155mm | ||
| Material | modified polymer plastic | ||||
| Sealing Structure | mechanical sealing | ||||
| Color | black | ||||
| Maximum Splicing | 96 fibers (4 trays, 12 fibers/tray) | ||||
| Capacity | |||||
| Applicable Splitter | 1pc of 1*16 PLC Splitter or 2pcs of 1*8 PLC Splitters | ||||
| Sealing | IP68 | ||||
| Impact Test | IK10 | ||||
| Pull Force | 100N | ||||
| Midspan Entry | yes | ||||
| Storage | yes | ||||
| (Tube/Micro Cable) | |||||
| Net Weight | 4kg | ||||
| Gross Weight | 5kg | ||||
| Packing | 540*410*375mm (4pcs per carton) | ||||
