ODP Fiber Optics Distribution Box (4~48Core)

Application:ODP fiber optics distribution box is currently being widely used for distributing outdoor optical cable in indoor and outdoor conditions. It is very suitable for FTTx uses. This cabinet offers ideal environment for fibers to be spliced and well organized under indoor and outdoor environment.

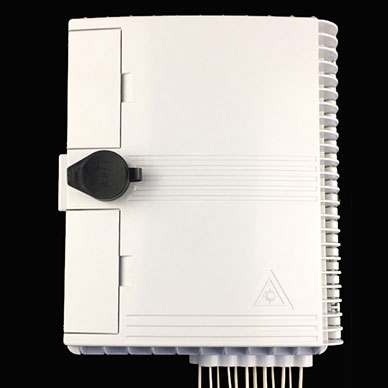

1. Wall mounted for indoor or out door, white color, graceful style and good adaptability to environment.

2. Made of high quality ABS+PC, anti-collision, flame retardant, resistance to impact.

3. Anti-UV, wet-proof, water-proof, dust-proof, anti-aging.

4. Fit for 1x4 , 1x8 and 1x16 PLC splitter assembly.

5. It has 2 input ports and 16 output ports on the bottom and it is easy to install on the wall or pole.

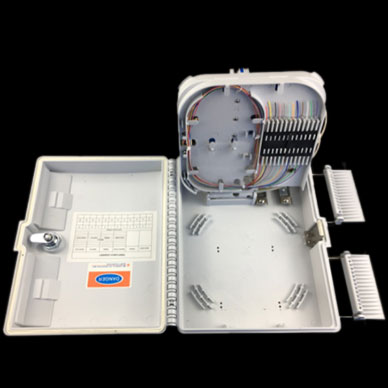

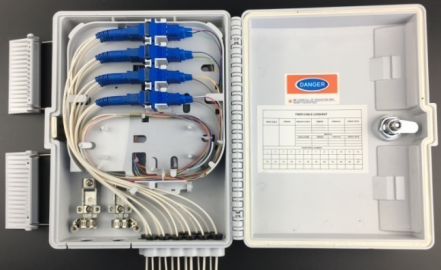

6. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.

7. Cable, pigtails, patch cords are running through own path without disturbing each other, easy maintenance.

8. Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

9.  Made of high-impact plastic:ABS+PC (ROHS standard)

10. Color: White

11. Cable Diameter: 11~13.5mm

12. Can hold up to 16 drop cables

13. Can hold up to 16 SC Adapters

14. 2 inlet ports,16 outlet ports

15. Great for wall mounting or pole mounting

16. Pretection class-IP67

17. RoHS compliance



Technical Parameters:

Dimensions and Capacity
Cabinet TypeDimensions (W×H×D)mmCapacityCapacity
FC/SC adaptersLC (Duplex) adapter
Filleted Corner380×240×901224
Temperature-30ºC - 75ºC

Humidity≤90% (at 30 ºC)

Air Pressure70kPa – 106kPa

Waterproof Grade:IP67
