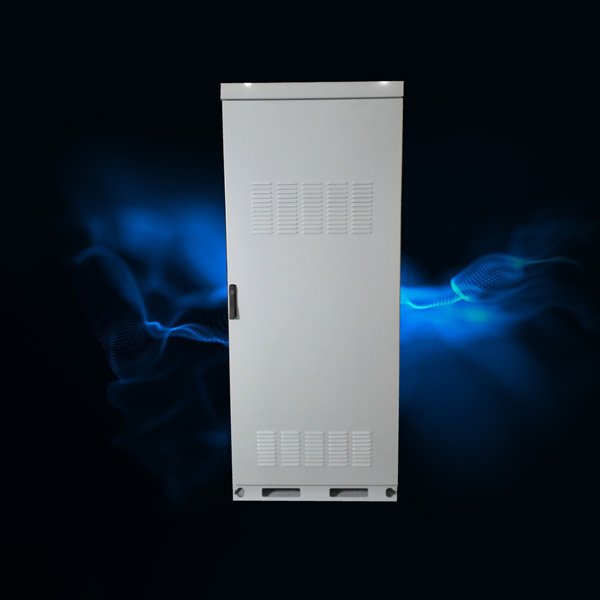

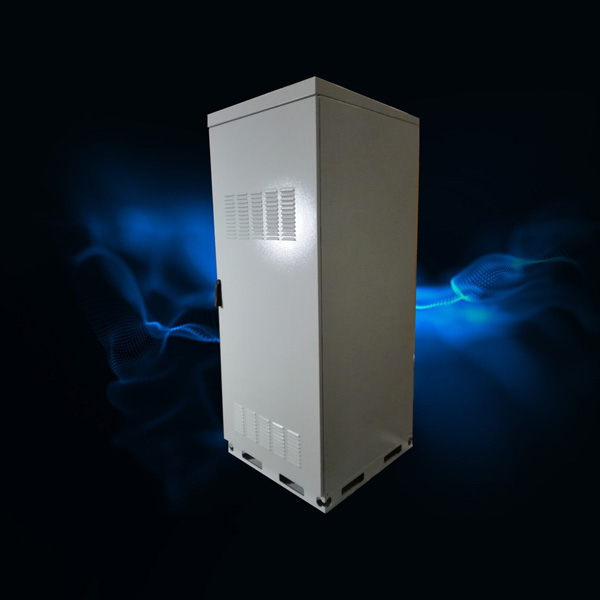

NBS800A Battery Outdoor Cabinet

Application:The NBS800A Battery cabinet is made of stainless steel plates of high mechanical performance and bearing capacity. The compact structure with electrostatic spraying makes the cabinet more wear-resistant, corrosion-resistant and fireproofing.

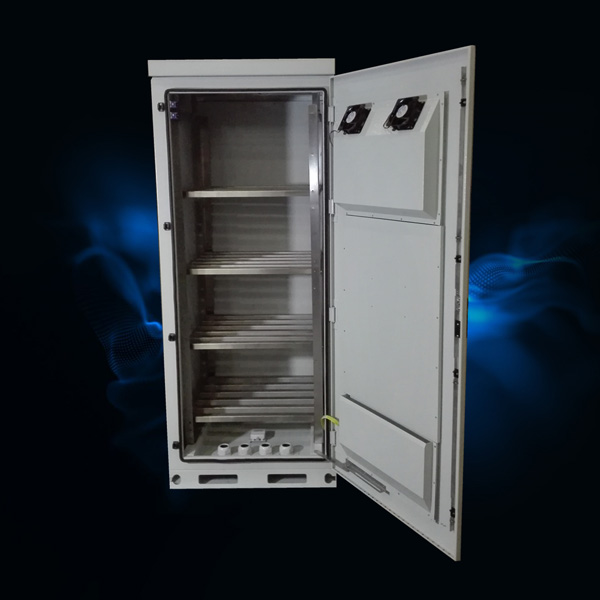

1. Strong rack inside to be equipped with telecom equipments, power source, battery,temperature control device and other attachments.

2. Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.

3. Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.

4.Can be installed in any difficult places include the top of mountain and the roof of buildings.

5. Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55.

6. Supportcustom-made.

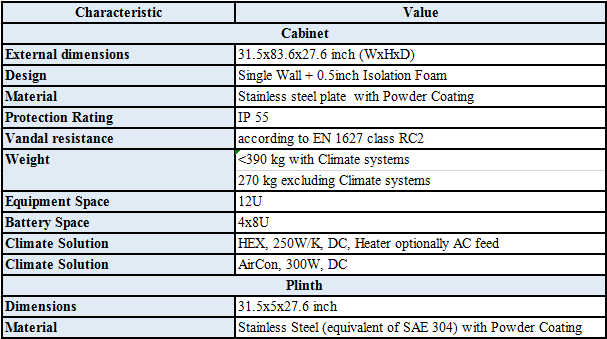

Cabinet Characteristic


Envireonmental & Mechanical Specifications

     Proection ClassIP55
     Impact ProectionIK10
     Operation Temperature-45°C to +45°C (according to ETSI 300 019-1-4,Class 4.1E)
     Storage Temperature-25°C to +45°C (according to ETSI 300 019-1-1,Class 1.2)
     Transportation Temperature-40°C to +45°C (according to ETSI 300 019-1-2,Class 2.3)
     EarthquakeZone 4
