Containerized Data Center
PRODUCT DESCRIPTION

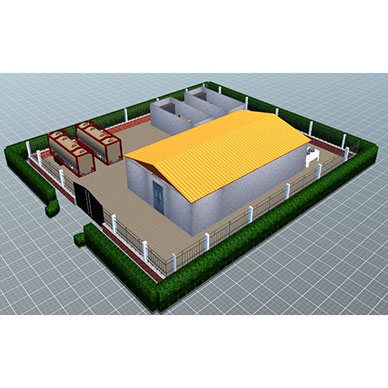

Application：Traditional data centers suffer from long construction periods, high energy consumption and high initial investment. To help resolve these issues, Containerized data center solves this problem very well, which has a highly integrated power system, environmental monitoring, cooling systems, racks, cabling, fire control, security and other infrastructure facilities. This solution complies with the diverse business needs of customers today. Application Scenarios IT load 90kW Fast deployment, staged deployment scenario Data center Value & Features Easy Prefabricated and pre-tested, ensure deploy time is one week Modular structure realizes fast & on-demand deployment Intelligent management makes unattended operation Efficient High energy efficiency, PUE down to 1.2 High density and saving 80% footprint data center Reliable Component/device/system triple reliable design IP56 external protection level and 9 intensity anti-seismic level. Operate without interrupted from -40 C to +55 C 3
DESCRIPTION

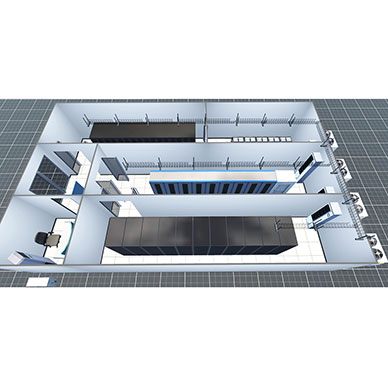

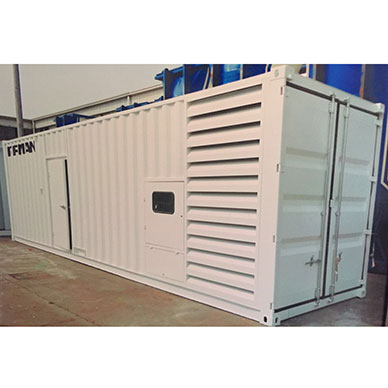

High integration, one week installation, easy to move and deploy
● Integrated rack, monitoring, cabling, power supply & distribution, anti-fire, air-conditioning systems and other major subsystems, one-stop solution.
● 1 week fast installation, deploy after simply obtaining site, power and network.
● Unique anti-vibration system, best mobility.
Super Adaptability, Applicable to Complex Scenarios
● Operating Temperature:-40 degC to 55 degC, suitable for extra low / extra high temperature region.
● IP55 dustproof and waterproof design, can be used in the dusty mining area; special. anti-corrosion treatment, able to deploy on sea shore. Life span is up to 15 years.
Saving OPEX, improving ROI
● The construction period is extremely shortened.
● Efficient UPS, aisle isolation, significantly reducing OPEX.
● Saving more than 30% space.
Efficient, Automatic and Intelligent with Smart Management
● Unified management platform, collect status of temperature, humidity, smoke, door magnetic etc.
● Automatically handle emergencies, enhance the availability of data center, improve management efficiency.

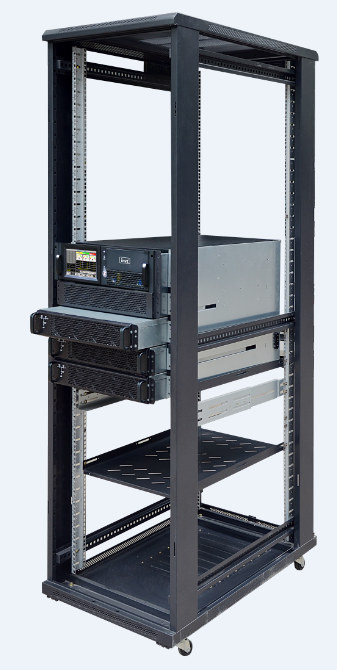

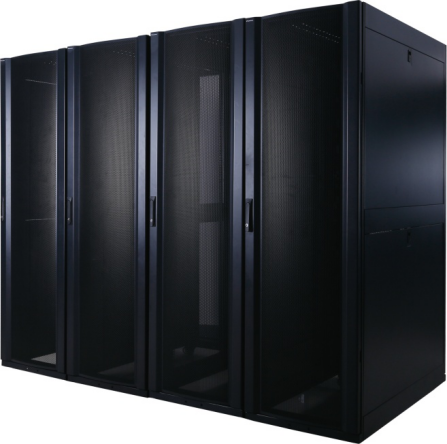

Rack system ● 19" standard system ● Glass front door, 200 wide cold passage ● Back door glass door, 150 wide heat channel ● Cabinet bearing capacity is 1500KG ● A variety of wiring accessories inside the cabinet for easy routing ● 24" standard system ● The cold and hot channel is closed to guarantee the cooling effect and reduce PUE |
|
The power distribution system ● High-performance UPS is optional ● Modular ● Rack type ● Support battery pack or battery cabinet ● Wiring module integrated UPS, input and output power distribution, air conditioning, lighting, monitoring power distribution ● Two - way ATS input is optional ●Support N,N+1,2N power supply system |
|

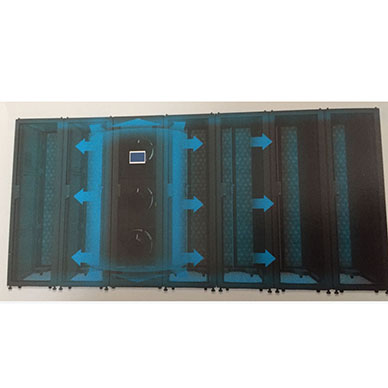

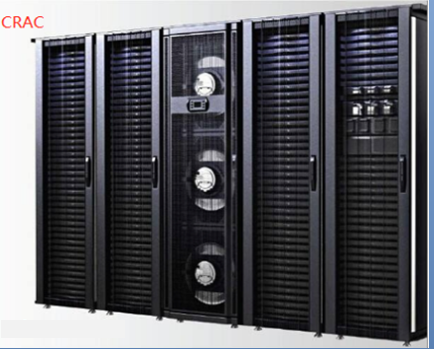

| Precision line air conditioner 1, providing air conditioning refrigeration capacity 10~45KW 2, accurate airflow organization, using EC fan to supply air, air volume automatically matches server load, energy saving effect is remarkable 3, air conditioning and cabinet side by side layout, close to heat source cooling, improve cabinet-level cooling density, reduce loss on the air supply path, high efficiency and energy saving 4. The cabinet is insulated from the hot and cold channels to avoid local hot spots in the short circuit of the hot and cold airflow. The power density of the cabinet is as high as 15KW/rack. |

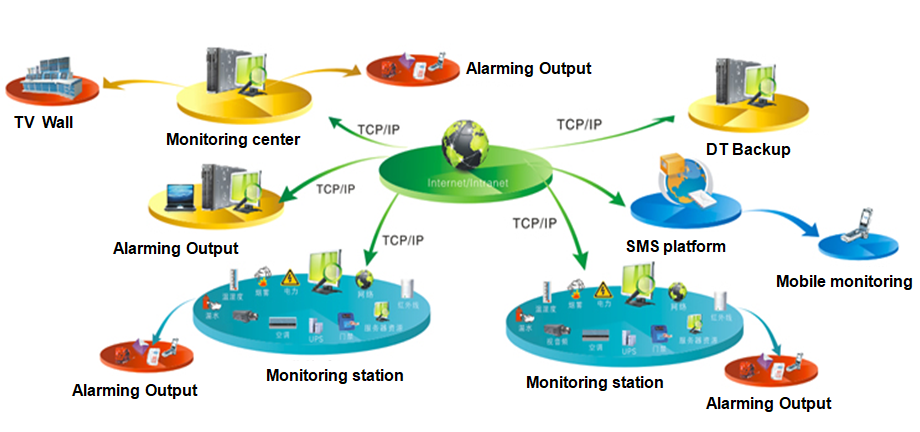

The monitoring system ● Power supply circuit monitoring ● UPS monitoring, air conditioning monitoring ● Internal temperature and humidity monitoring ● Smoke sensor, optional fire opens cabinet door ● Large screen interface ● Integrated into BMS, third-party monitoring |
|
| Infrastructure: Customized color and logo IP Level: Single container IP55 Container life time: >20years |

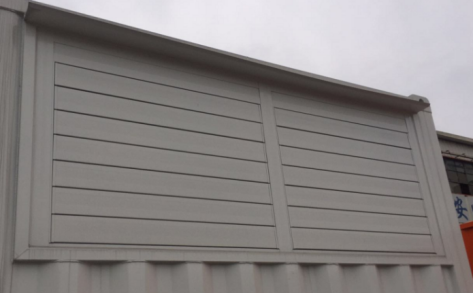

| Automatic ventilation |

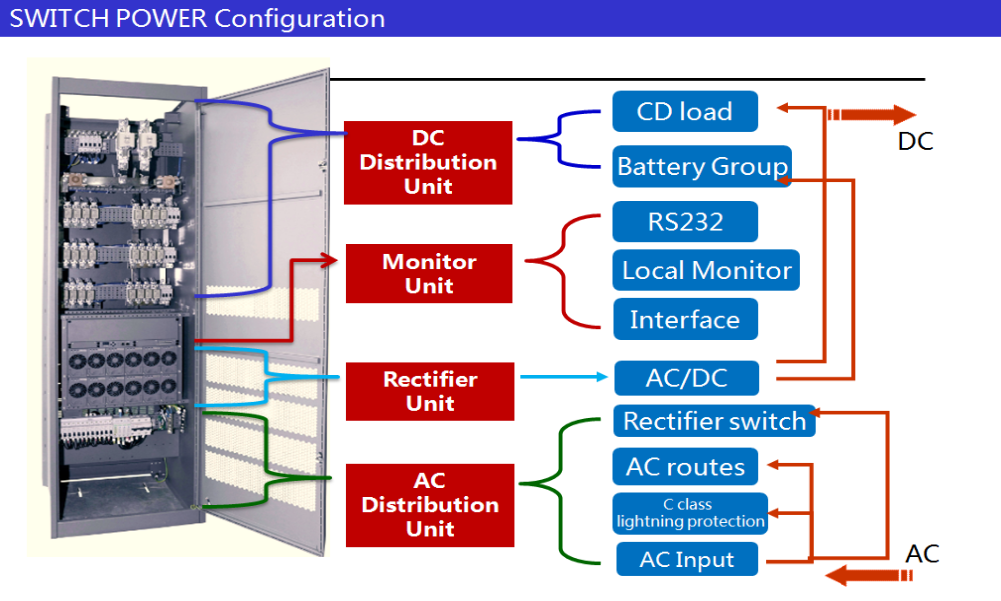

| Switch Power 2 Units of switch power for DC power for CT equipments ,Each switch power’s ultimate capacitance is 48V/1000A and it could be installed with rectifier module which capacitance is 48V/100A according to operation needs. |

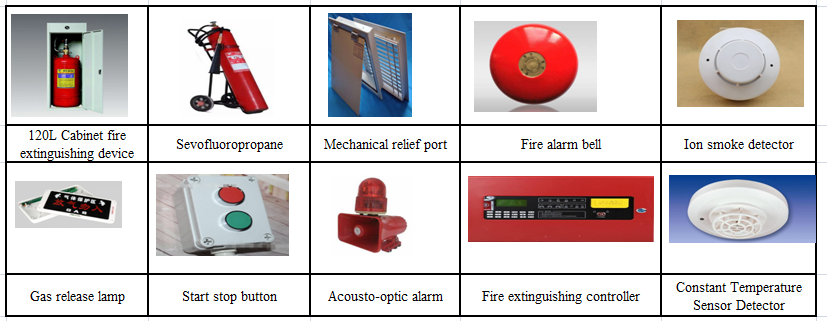

| The fire control system Offers fire detection and fire alarm function and fire extinguishing function so that keep the Data center’s safety |
Envireonmental & Mechanical Specifications
| Power | Incoming Power | Two mains or one main power plus one generator |
| Power Density per rack | 5kw | |
| UPS Capacity | 90kVA | |
| UPS Redundancy | 2N or N+X | |
| BAT backup time | 60mins | |
| Cooling | Technology | 4units 40kw Precision line air conditioner for 3+1 backup |
| Total cooling capacity | 90kw | |
| indoor unit capacity | 20kw/30kw | |
| Refrigerant | R410A/R134a | |
| Fan type | EC Fans | |
| Compressor | Scroll Compressor | |
| Humidity | Build-in humidification function | |
| Design operation parameter | Cold Aisle Temperature | 18-27℃ |
| Humidity Range | 20% to 80% relative humidity | |
| Environmental requirement | Operation Temperature | -33℃-45℃ |
| Operation Humidity | 10% to 90% relative humidity | |
| Altitude | <3000m | |
| Fire Control | Type | Automatic fire fire detection&suppression system c/w emergency release function |
| Alarm | Fully monitored automated detection, supporting audible and visual alarm | |
| Detection | Addressable analogue system c/w double knock condition to initiate gas release | |
| Extinguishant | Heptafluopropane or NOVEC1230 | |
| Fire Rating | 50mins | |
| Security | Access Control | Card access system(RFID) |
| IP Camera | Accessible via the integrated management system | |
| Management | Management function | Monitors internal temperature, the humidity control system, the fire detection&supperssion system, the access control system, the air-conditioner system Support E-mail, SNMP&SMS monitoring Interoperable with all backup power supply systems via programmable dry contacts(Generators) |

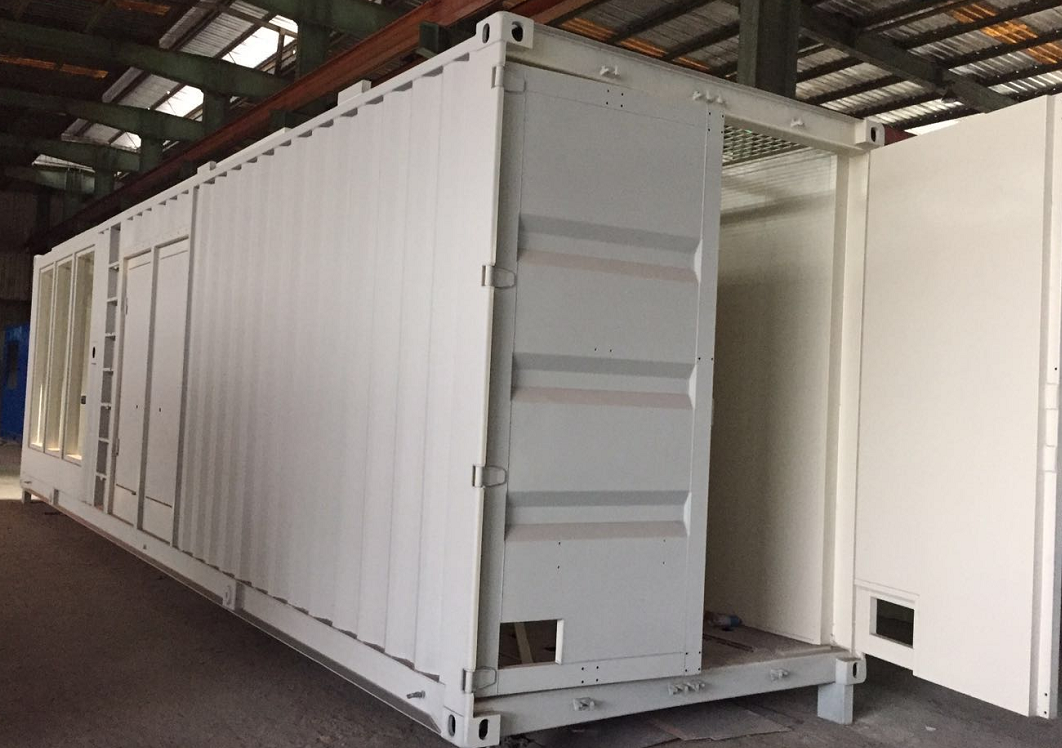

| Structure | Main Frame | Power container: 40" ISO shipping contianer |
| IT contianer: 40" ISO shipping contianer | ||
| CT contianer: 40" ISO shipping container | ||
| IT Rack | 12 IT racks(per IT contianer),540U | |
| CT Rack | 8 IT racks(per IT contianer),360U | |
| Rack Installation Space | Support 19" standard equipment installation | |
| Insulation | Polyurethane foam insulation(top-75mm, side-40mm) | |
| Cabling | Power cables, optical fiber and data cables are separated, above the ceilling | |
| Pipes design | AC pipes are under the floor | |
| Waterproof and dustproof | IP55 | |
| Size | IT container(L*W*H) | 12192*2438*2896(mm) |
| CT container(L*W*H) | 12192*2438*2897(mm) | |
| Power container(L*W*H) | 12192*2438*2896(mm) |
