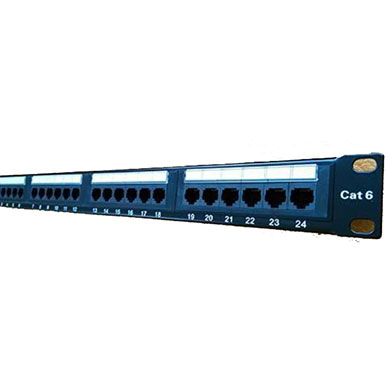

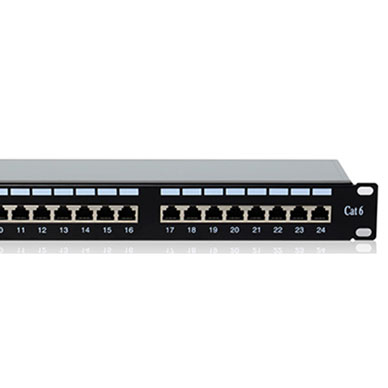

24 Port/Wst CAT.6 Patch Panel

Application: CAT.6 PATCH PANEL can be applied to 1000Mbps Ethernet Networking.The patch panel can be mounted on any standard 483(19in) equipment rack or communication cabinet as shown.The back cable management help you to arrange and tie the cable orderly and conveniently.You can impact into 110IDC with 110 impact Tool or Krone impact Tool convenient.Features meet FCC subpart 68 requirements, this Patch Panel can provide all 250 MHz bandwidth.


• 19" rack mountable

• 24 ports in 1U space

• Universal wiring blocks for easy termination

• Right-angled wiring block orientation for easier installation

• Color coded wiring blocks for easy cable lacing

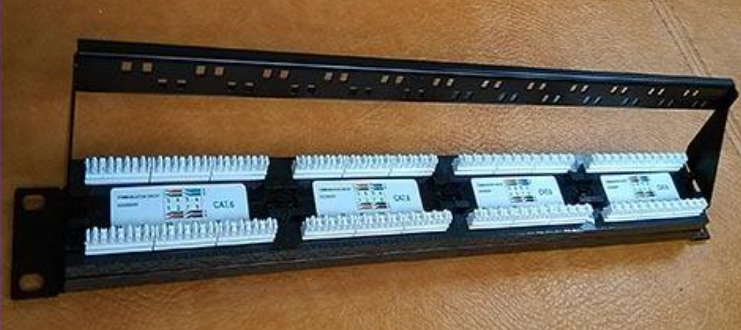

• Integral rear cable management

• Using metal materials, strong performance, dust, moisture, anti shock.


Technical Parameters:

Product Name: Distribution frame

Material: Cold rolled steel

Color: Black and white

Size: Approx. 483x40x32 mm/19.0"x1.57"x1.26"

Current Rating: 1.5 Amp Max.

Voltage Rating: 150 Volts

Contact Resistance: 20 m-ohm

Insulation Resistance: 500M-ohm

Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min

Housing: PC UL94V-0

IDC: PC , Accept 22-24 AWG Solid Wire.

PCB: FR4 1.6mm(0.04") thickness, 2 layers

Applicable Cable type: 22-28AWG

Plug Times: 800 (Times)

Port Number: 24
