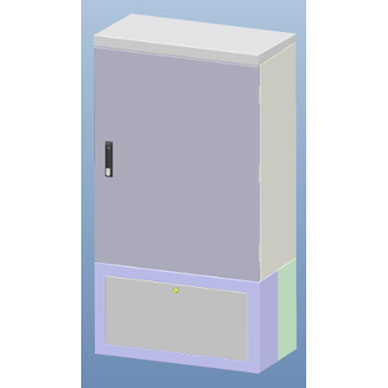

Metal Optical Fiber Network Distributor Outdoor Cabinet MOP750

Application:The MOP750 cabinet is an overground, passive outdoor distribution point, in which optical fibers are branched, connected and distributed via a modular optical fiber management system. The cabinet is set up on a plinth, which is also used for neat insertion of outdoor cables/microducts/microduct bundles. The MOP750 cabinet have a modular design. It provide to loop or splice Gf-main cables in the cabinet. In addition, it is to be used to accommodate branch cables, which can be connected to the main cable via a flexible bundle and fiber management. The MOP750 cabinet is used for splicing or looping Gf main cables and for connecting branch cables as outdoor cables or as micro-cables in microduct 7x1.5 outdoors, with a cassette system for a single or multiple fiber management system in accordance with TS 0319/96.


• a cabinet, incl. plinth (standard cabinet)

• an adapted base plate with entries and seals for cables/microducts,

• a mounting structure and adaptation/fastening elements for installation of the Gf-NVt installation kit in the cabinet

• the MOP750cabinet installation kit with E&MMS cassette system, microduct and cable interception and micro-cable management

• Dimensions: 30 x 59 x 12.5 inch(WxHxD)

• The cabinet: Aluminum alloy / stainless steel plate ,double wall

• Color: RAL7035

• Protection category: IP55 to EN 60 529/10.91

• Protection against burglary up to RC 2 (resistance class), according to DIN EN V 1630: 1999-04

Technical Parameters:

Nominal work wave-length: 850nm, 1310nm, 1550nm

Operating temperature: -5℃-+40℃

Storage temperature: -40℃ +70℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure: 70~106 KPa

Insertion loss: ≤0.2dB

Return loss:≥45dB (PC), ≥50dB(UPC), ≥60dB(APC)

Isolation resistance:≥1000MΩ/500V(DC)

Durability:>1000 times

Anti-voltage strength: ≥3000V(DC)/1min

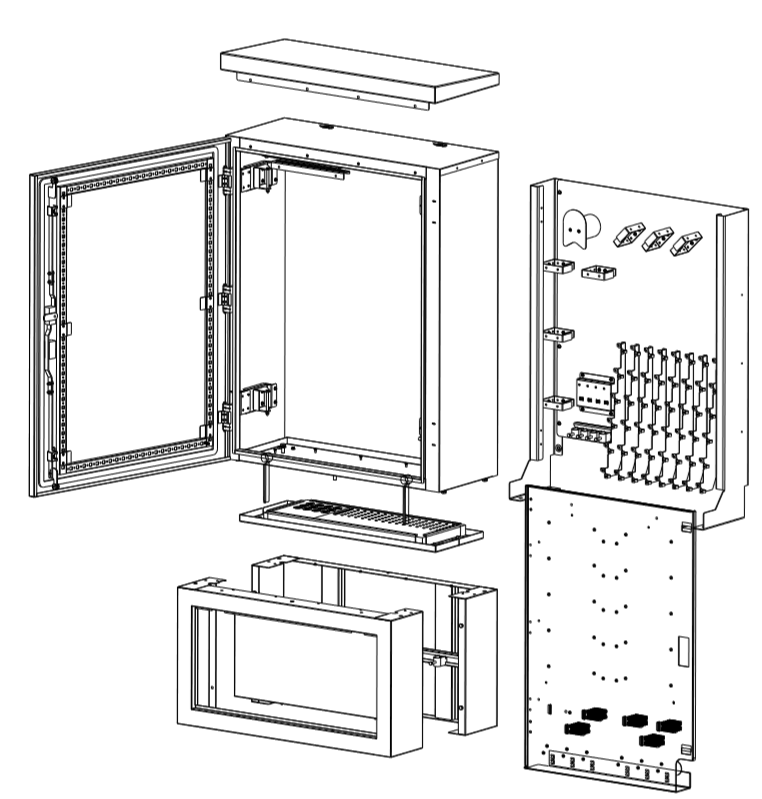

Exploded drawing


Envireonmental & Specifications

     Proection ClassIP55

     Impact ProectionIK10

     Operation Temperature-45°C to +45°C (according to ETSI 300 019-1-4,Class 4.1E)
     Storage Temperature-25°C to +45°C (according to ETSI 300 019-1-1,Class 1.2)
     Transportation Temperature-40°C to +45°C (according to ETSI 300 019-1-2,Class 2.3)
     EarthquakeZone 4
