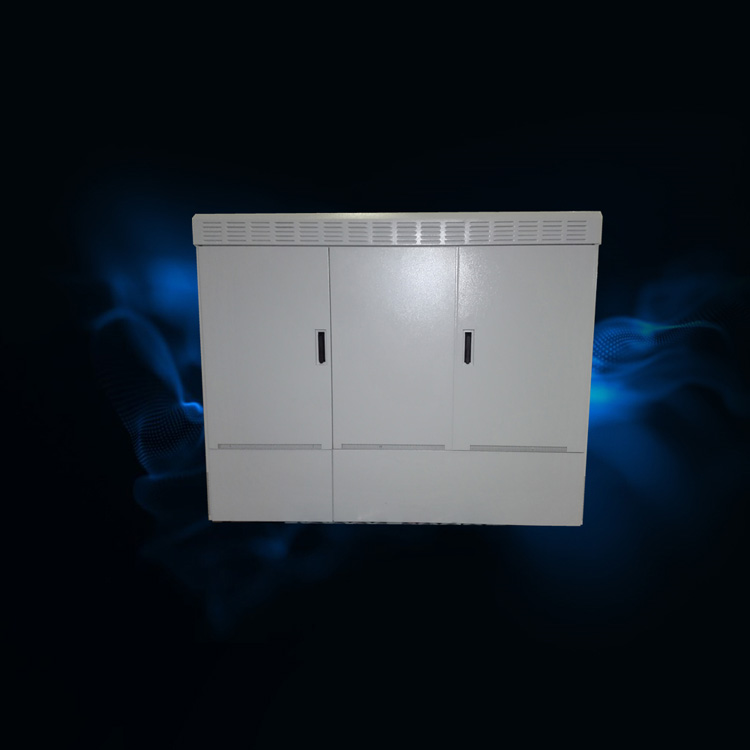

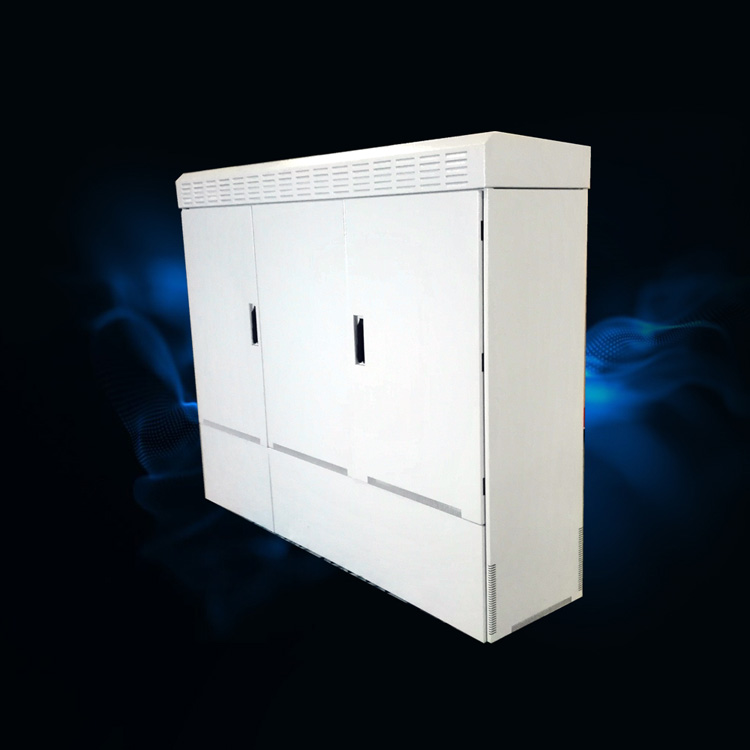

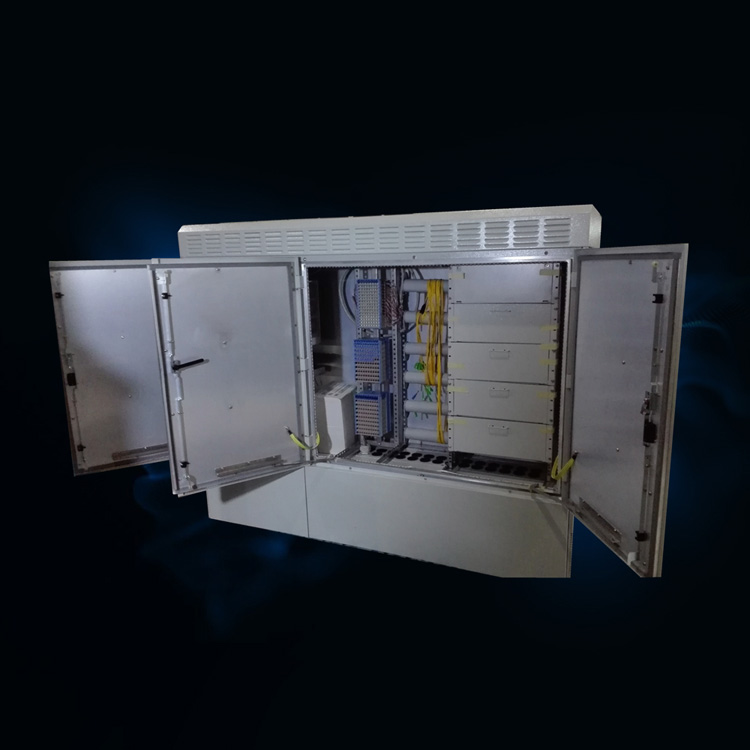

MFG15 Multi-functional Outdoor Cabinet
PRODUCT DESCRIPTION
Application:
The MFG15 Multi-functional cabinet is an outdoor cabinet system that provides maximum protection of customer’s telecom equipment against vandalism and extreme weather conditions. This cabinet is the ideal solution for installations over existing cross connect cabinets in parallel with the hosting of active and passive telecom equipment.
DESCRIPTION
Features:
• Dual wall aluminum
• Robust design
• Modular design
• Easy installation process
• Solid profile technology
• Excellent heat dissipation
• 19”technology with moving frames
• Cooling capacity by using heat exchanger
• Customer specific integrations
• Left anf Right type available,depending on the installation site
• 1x ISAM7330, up to 384 VDSL
• 1 battery string (80Ah), 2h backup time
Highlight feature
Cabinet:
Dimensions:
69x 51 x 20inch (WxHxD) – cabinet
69x 10 x 20inch (WxHxD) ) – intermediate plinth
69x 22 x 20inch (WxHxD) – ground plinth

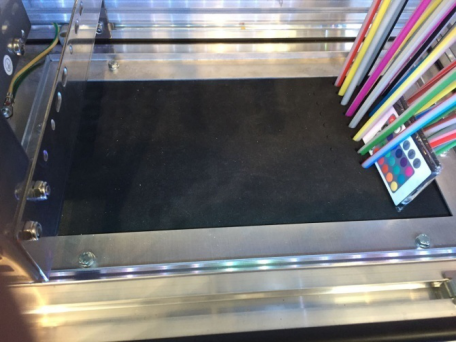

The cabinet: Aluminum alloy, double wall , three front doors.
The intermediate plinth: Aluminum alloy, singel wall
The ground plinth: galvanized steel or stailnless steel
19"" equipment mounting rail
11U wide for equipment, power unit, and ODF

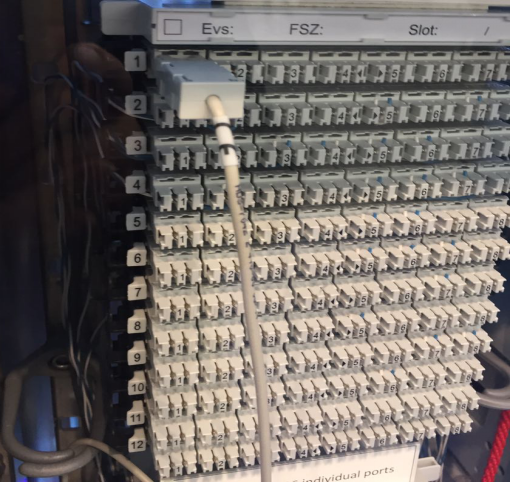

Grounding bars in the equipment and MDF compartments
Color RAL 7035 of enclosure
Closed type of the plinth, rectangular shape with 4 legs
Protection category: IP55 to EN 60 529/10.91
Protection against burglary up to RC 2 (resistance class), according to DIN EN V 1630: 1999-04
Cooling:
Passive – for up to 4 cards (inclusive)
HEX installed in the roof – from 5 cards
|
|
|

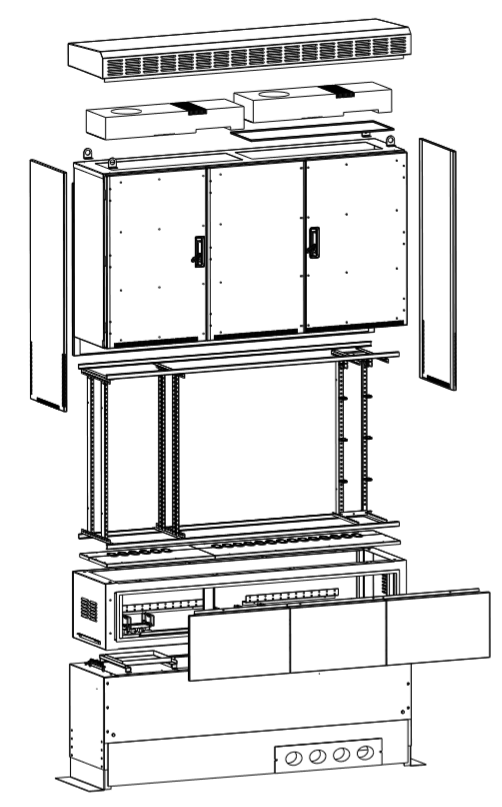

Exploded drawing
Envireonmental & Mechanical Specifications
| Envireonmental | |||
| Proection Class | IP55 | ||
| Impact Proection | IK10 | ||
| Operation Temperature | -45°C to +45°C (according to ETSI 300 019-14,Class 4.1E) | ||
| Storage Temperature | -25°C to +45°C (according to ETSI 300 019-1-1,Class 1.2) | ||
| Transportation Temperature | -40°C to +45°C (according to ETSI 300 019-1-2,Class 2.3) | ||
| Earthquake | Zone 4 | ||
| Mechanical | |||
| Construction | Aluminum alloy | ||
| Surface | Poeder Coated,RAL 7035 | ||
| Reserved for PSU with DC Distribution | 1U 19"(extra 1U for DC terminals) | ||
| Reserved for ODF | 1U | ||
| Reserved for AC PDU | 3U | ||
| Free User Space | 22U 19" | ||
| Locking Mechaism | 3-Points system | ||
| Cable Entry Point | Bottom | ||
| Temperature Control | |||
| Cooling system | Passive / Heat exchanger 60w/k | ||
| Heater | Included | ||
| Sensors | |||
| Door Alarm Contact | Included | ||
| Smoke Sensor | Included | ||
| Temperature | Included | ||
| Flood Sensor | Included | ||
